Product Information

Galden® D02 has similar properties to 3M™ FC-40 and can be used in its place in many applications, including gross leak and dielectric testing**

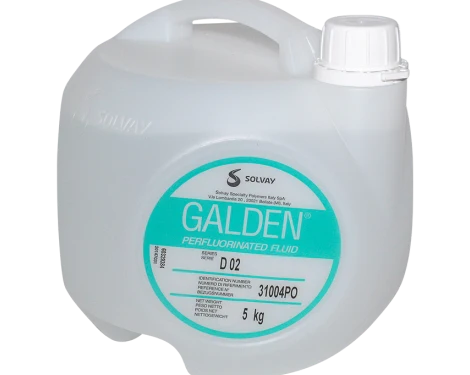

Galden® D02 PFPE Electronic Reliability Testing Fluid

Galden® D02 PFPE grades are specifically recommended for electronic reliability testing, including thermal shock and hermetic seal testing. Galden® PFPE is a line of high-performance, inert, fluorinated fluids. Various grades, with a variety of service temperature ranges, are available. Uses include heat transfer, electronic reliability testing, vapor phase soldering, solvents, and acid spill mitigation. These are ideal fluids for applications with component immersion, wafer etching, ion implantation, radar equipment, transformers, power supplies, UF6 production, chillers, cooling towers, and freeze dryers.

Features of Galden® D02 PFPE Electronic Reliability Testing Fluid

• Boils at 175 °C and freezes at -97 °C
• Perfluorinated, inert polyethers have a high resistance to oxidation and thermal degradation
• Compatible with metals, ceramics, plastics, and elastomers
• Fluids have low viscosity, no hydrogen in the molecular structure, and low water absorption
• Excellent for use in direct immersion cooling and indirect cooling applications
• Nonflammable, nontoxic, and safe for the environment

Benefits of Galden® D02 PFPE Electronic Reliability Testing Fluid

• Environmentally safe do not damage the ozone
• Highly inert
• Good heat transfer medium
• Chemically and thermally resistant
• Non-toxic

Galden® D02 and D03

Low consumption indicator fluids.

Galden® D02 and D03 can be advantageously used as Indicator fluids respectively in military and non-military applications.

• Higher boiling point
• Lower vapor pressure at test temperature

Will Result in …

• Reduced evaporative loss
• Lower consumption compared to other commercially available indicator fluids
